Description

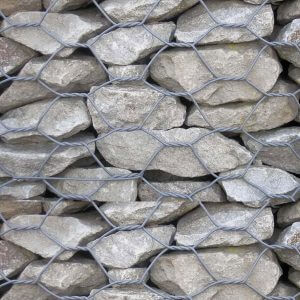

Hexagonal Woven Mesh
Hexagonal woven mesh is the perfect product for rockfall mesh netting and to cover large areas of river mattresses quickly. The mesh is of high strength and made of durable flexible material. Wire coatings are either galvanised or Galfan coated. For more aggressive environments, an additional organic polymer powder (PVC) coating should be applied to a Galfan coated base wire. The mesh aperture size is either 60×80 or 80x100mm hexagonal mesh type with either 2.20 or 2.70mm mesh wire and 3.4mm diameter salvage wire along the mesh roll edging. We normally also provide the 2.2mm binding wire for lacing rolls together along the common edge. These mesh rolls have a high tensile strength and can also be provided with steel dowels as required for anchorage into slopes.
Mesh rolls can be effectively used to prevent rockfalls on steep rock slopes, with mesh attached securely to the rock face, you can also use mesh rolls to cover large areas of mattresses. Often mattress lids get in the way during installations, we recommend leaving them out of the way, and covering them when the infill and packing are complete.
Roll sizes available – 2 metres wide x 50m long (100m2) or 2 x 100
Hexagonal Woven Mesh Technical Document
